| Drill Technology: Now we make it even easier for you with MASTERCARD/VISA/DISCOVER/AMEX Payment Options | ||||
|---|---|---|---|---|
| PRICE | AVAILABILITY | SELECTION | CONVENIENCE | Mail: Drill Technology |
| 4 ways to Order | Fax: 1-616-676-1287 | TEL: 1-616-676-1792 | Email:sales@drilltechnology.com | P.O. Box 456, Ada, MI. 49301 |
| SERIES | DIA. WIRE OR MM |
DIA. MM SIZE |
Range of DIA. INCH |
FLUTE LGTH INCH |
Single PC PRICE US $ |
10 PC PRICE US $ |
50 PC PRICE US $ |
|---|---|---|---|---|---|---|---|

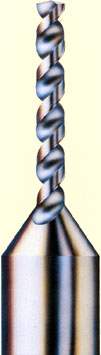

| Small Dia. Series Drills Std. Flute |
#80-#77 More Information |
 |
(.0135-.0180) | .200" to .300" to .400" |
$4.75 | $2.75 | $2.15 |
| .50mm More Information |
.0197" |
$4.75 | $2.50 | $1.95 | |||
| #76-#73 More Information |
.0200-.0240 | $4.75 | $2.50 | $1.95 | |||
| #72-#71 More Information |
.0200-.0260 | $4.75 | $2.10 | $1.65 | |||
| Standard Diameter Series Drills Std. Flute Length |
.70mm-#66 More Information |
.0276-.0330 | .400" | $4.75 | $1.70 | $1.35 | |
| .85mm-#53 More Information |
.0335-.0595 | .400" | $4.75 | $1.70 | $1.35 | ||
| 1.55mm-#43 More Information |
.0610-.0890 | .400" | $4.75 | $2.25 | $1.77 | ||
| 2.30MM-1/8" More Information |
.0906"-.1250" | .400" | $4.75 | $2.25 | $1.77 | ||

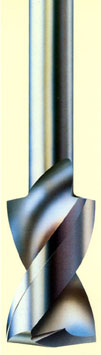

| Large Diameter Series Drills Reverse Shank Drills |
3.20mm-9/64" More Information |
 |
.1260-.1417 | .500" | $4.75 | $3.20 | $3.20 |
| 3.60mm-4.00mm More Information |
(.1437-1575) | .500" | $4.75 | $3.95 | $3.95 | ||
| #21-4.40mm More Information |
(.1590-.1732) | .500" | $4.75 | $4.40 | $4.40 | ||
| 4.45mm-#12 More Information |
(.1752-.1890) | .500" | $4.80 | $4.80 | $4.80 | ||
| 4.85mm-5.20mm More Information |
(.1909-.2047) | .500" | $5.80 | $5.80 | $5.80 | ||
| #5-#2 More Information |
(.2055-.2205) | .500" | $6.10 | $6.10 | $6.10 | ||
| 5.65mm-6.00mm More Information |
(.2210-.2362) | .500" | $6.80 | $6.80 | $6.80 | ||
| "B"-1/4" More Information |
(.2380-.2570) | .500" | $7.45 | $7.45 | $7.45 | ||
| "G"-"I" More Information |
(.2600-.2756) | .500" | $10.67 | $10.67 | $10.67 | ||
| "K"-9/32" More Information |
(.2770-.2835) | .500" | $14.00 | $14.00 | $14.00 | ||
| "L"-5/16" More Information |
(.2854-.3150) | .500" | $16.67 | $16.67 | $16.67 | ||
| "O" More Information |
(.3160-.3189) | .500" | $20.16 | $20.16 | $20.16 | ||
| "P"-21/64" More Information |
(.3208-.3504) | .500" | $22.95 | $22.95 | $22.95 | ||
| "T"-3/8" More Information |
(.3543-.3750) | .500" | $32.67 | $32.67 | $32.67 |
| Drill Specifications and Dimensions | |
|---|---|
| Overall Length: | (OAL) 1 1/2" (38MM) |
| Shank Diameter: | 1/8" (3.175MM) |
| Drill Point Angle: | 130 Degrees for Sizes #80(.0135") to 1/8" (.1250") |
| Drill Point Angle: | 165 Degrees for Sizes 3.20MM(.1260") to 3/8" (.3750") |
| Additional Point Angles Available: | 90 Deg; 110 Deg; 118 Deg; 135 Deg; 150 Deg; 165 Deg etc |
| Material: | Solid Sub Micro Grain Carbide |
| Specials?: | Yes, We will do Specials: Ask Us! |
| Don't See Your Flute Length or Diameter? | Email us at: sales@drilltechnology.com Chances are We have it |
| More Questions?? | Email us at: sales@drilltechnology.com |
